Sizing your environment

Overview

A single Plixer Scrutinizer collector instance can scale up to 100,000 fps sustained with spikes up to 200,000 fps, collecting from up to 500 exporters per collector. A distributed cluster can scale up to 50 collectors. That allows for sustained 5Mfps (spikes to 10Mfps) from up to 25000 exporters.

Flows per second

Flows per minute

Flows per hour

Flows per day

10K

600K

36M

864M

100K

6M

360M

8.6B

5M

300M

18B

432B

Processing 8.64 billion records a day will naturally require more than our minimum system specifications would allow for. This document will help you determine what resources are required.

Keep in mind there are many more factors than are outlined here, therefore requirements for some instances will vary.

Plixer Scrutinizer

This section contains information on Plixer Scrutinizer sizing.

Minimum specs

Our minimum system specifications are based on a max of 5kfps and 25 exporters. As system loads increase required resources will increase.

The big three

The big three variables are: CPUs, Memory, and Disk. Processing huge data volumes requires large amounts of all.

CPU: The requirements for CPU most closely correlates with the number of exporters coming in.

Memory: The requirements for memory most closely correlate with flow volume.

Disk: Disk IO closely correlates with flow rate. Disk size requirements will be a function of an organizations data retention needs.

Important

All recommendations are based off of DEDICATED resources and that SHARED CPUs, RAM, and disk may not perform up to the recommended levels.

If you are streaming to ML or an external data lake, collected flow rates will be 25% less or CPUs and RAM need to be 25% higher.

Single instance guidelines

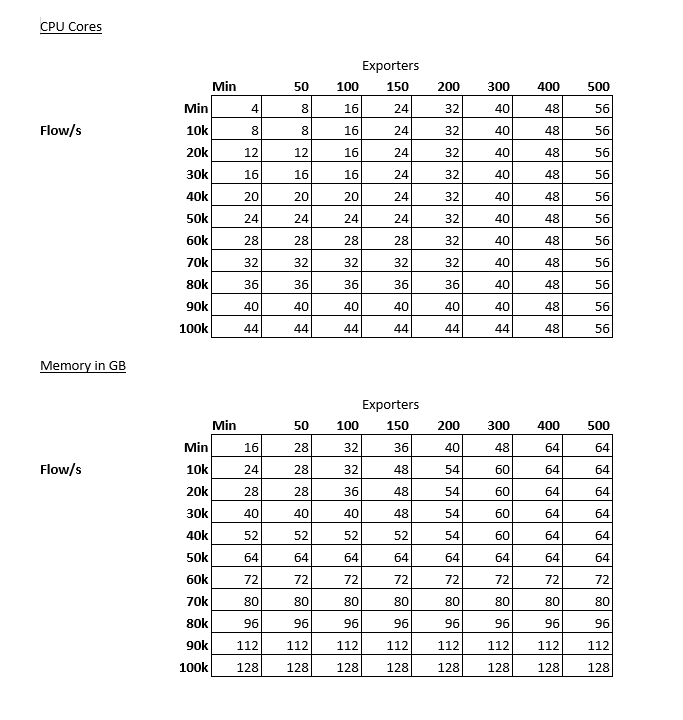

../../../_images/cpu_memory.png

Important

Plixer Scrutinizer is an IO intensive product. We recommend 15K drives or SSDs in RAID 10 for the best performance.

Reporter resources

With a distributed Scrutinizer deployment a number of servers work in concert. The reporter(s) act as the coordinator for all servers and therefore require resources in proportion with the number of servers.

Minimum CPUs: 2x servers in a cluster

Recommended CPUs: 4x servers in a cluster

Minimum Memory: 2GB per server in a cluster

Recommended Memory: 4 GB per server in a cluster

Take for example a distributed cluster with 10 collectors plus a dedicated reporter where the reporter is not collecting any external flow data. That reporter still has minim specs of 20 cores (we recommend 40) and 20 GB of RAM (we recommend 40 GB).

Additional considerations

Disk IO: In virtualized environments disk configurations and performance characteristics can vary greatly. Plixer Scrutinizer is a disk intensive application and avoiding waiting on disk is critical. There are too many factors that go into load on disk:

  • Size in bytes of each flow record

  • Cardinality of flow data

  • Aggregation method selected

Features enabled: Overall load on a system will vary greatly depending on which features are being utilized and at what levels. Some of the features that can impact resource needs are:

  • Number of Flow Analytics algorithms enabled and how many data sources are enabled

  • Number of configured report thresholds

  • Number of scheduled reports

Important

All flows are not the same: Performance will vary greatly depending on the size and complexity of the flows being collected.

  • The simplest flow configuration is NetFlow v5, where each flow record is 48 bytes on the wire (excludes headers and Plixer enhancements. Bytes on disk will be different).

  • More complex IPFIX templates can be well over 200 bytes per flow and include come complex structures like variable length strings that require more CPU to decode.

Note

Multiple templates matter: Multiple flow templates can add load like an additional exporter would.

  • If an exporter is sending the same flows in two templates, for example sending both ingress and egress metered flows, the load on the system for one exporter feels just like two exporters.

  • Option templates are small amounts of data sent infrequently so system impact is minimal. Recommended specs assume each exporter will be sending an option template.

  • This document uses the measure of “exporter”, because it simplifies things in almost all cases. If an exporter is sending additional template(s) with flow records it is safes to count that exporter as 2+ exporters.

Plixer Machine Learning Engine

This section contains information on Plixer Machine Learning Engine sizing.

Important

For PSI an “asset” is a host, for PNI an “asset” is an exporter interface.

CPU

Rows are flow per second (FPS), columns are number of assets supported. Measurement in number of cores.

50

100

150

200

250

300

350

400

450

500

10k

8

12

16

20

24

28

32

36

40

44

20k

12

14

18

22

26

30

34

38

42

46

30k

16

18

20

24

28

32

36

40

44

48

40k

20

22

24

26

30

34

38

42

46

50

50k

24

26

28

30

32

36

40

44

48

52

60k

28

30

32

34

36

38

42

46

50

54

70k

32

34

36

38

40

42

46

50

54

56

80k

36

38

40

42

44

46

50

54

56

56

90k

40

42

44

46

48

52

54

56

56

56

100k

44

46

48

50

52

54

56

56

56

56

Memory

Rows are FPS, columns are number of assets supported. Measurements in GB.

50

100

150

200

250

300

350

400

450

500

10k

40

80

112

136

160

184

208

232

256

256

20k

80

112

136

160

184

208

232

244

256

288

30k

112

136

160

184

208

232

244

256

288

320

40k

136

160

184

208

232

244

256

288

320

352

50k

160

184

208

232

244

256

288

320

352

384

60k

184

208

232

244

256

288

320

352

384

416

70k

208

232

244

256

288

352

352

384

448

448

80k

232

256

288

320

352

384

416

448

480

480

90k

256

288

320

352

384

416

448

480

512

512

100k

256

288

320

352

384

416

448

480

512

512

Disk

Rows are FPS, columns are number of assets supported. Measurements in TB.

50

100

150

200

250

300

350

400

450

500

10k

.2

.4

.6

.8

1

1.2

1.4

1.6

1.8

2

20k

.4

.6

.8

1

1.2

1.4

1.6

1.8

2

2.2

30k

.6

.8

1

1.2

1.4

1.6

1.8

2

2.2

2.4

40k

.8

1

1.2

1.4

1.6

1.8

2

2.2

2.4

2.6

50k

1

1.2

1.4

1.6

1.8

2

2.2

2.4

2.6

2.8

60k

1.2

1.4

1.6

1.8

2

2.2

2.4

2.6

2.8

3

70k

1.4

1.6

1.8

2

2.2

2.4

2.6

2.8

3

3.2

80k

1.6

1.8

2

2.2

2.4

2.6

2.8

3

3.2

3.4

90k

1.8

2

2.2

2.4

2.6

2.8

3

3.2

3.4

3.6

100k

2

2.2

2.4

2.6

2.8

3

3.2

3.4

3.6

3.6
